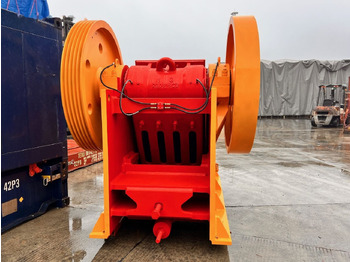

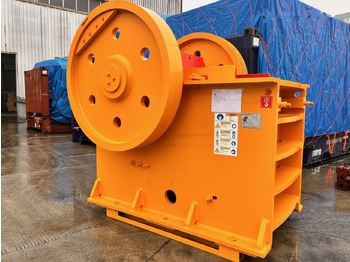

New KINGLINK 24"x36" Jaw Crusher PE2436

Standard Features:

- Single wall main frame of stress relieved steel.

- Open back for easy maintenance.

- All working parts lubricated for moisture and dirt protection.

- Reversible manganese jaw dies for maximum wear life.

- Large, spherical, self-aligning roller bearings.

- Isolated, close running annular/labyrinth seals protect bearings from dust and water.

- Removable pitman/bearing assembly for maintenance ease.

- Steep pitched toggle plate for maximum horizontal pitman movement.

- Hydraulic or manual shim adjustment.

- 4010 forged and heat treated oversized overhead eccentric shaft.

- Heavy duty, cast steel pitman with machined barrel.

- Machined pitman face for full swing jaw die support.

- Smooth running flywheels with compression ring fastening arrangement.

- Feed chute and pitman wear plates.

- Extra deep crushing chamber.

- Upper and lower wear plates.

Specifications:

- Feed Opening: 24"x36"

- Discharge setting: 3" to 5"

- Maximum feed size: 20"

- Production range: 70 to 170 TPH

- Required horsepower: 100 HP

- Rotor Speed: 250 RPM

Weights (LBS):

- Crusher: 31,500

- Flywheel: 3,100

- Fixed Jaw die: 1,600

- Movable Jaw die: 1,750

Standard part dimensions (inches):

- Flywheel diameter: 4' 11-5/8”

- Fixed Jaw Depth: 48 7/8”

- Movable Jaw depth: 55 1/8”

Freight Dimensions:

- Width: 6' 2"

- Length: 8' 3"

- Height: 7' 8"

- Weight: 31,500 lbs.

Optional Features:

- Motor and V-belt drive.

- Electric motor.
