Baskı makinesi Horizon VAC-100a VAC-100c SPF-20A FC-20A

Number of Colours: 20

-

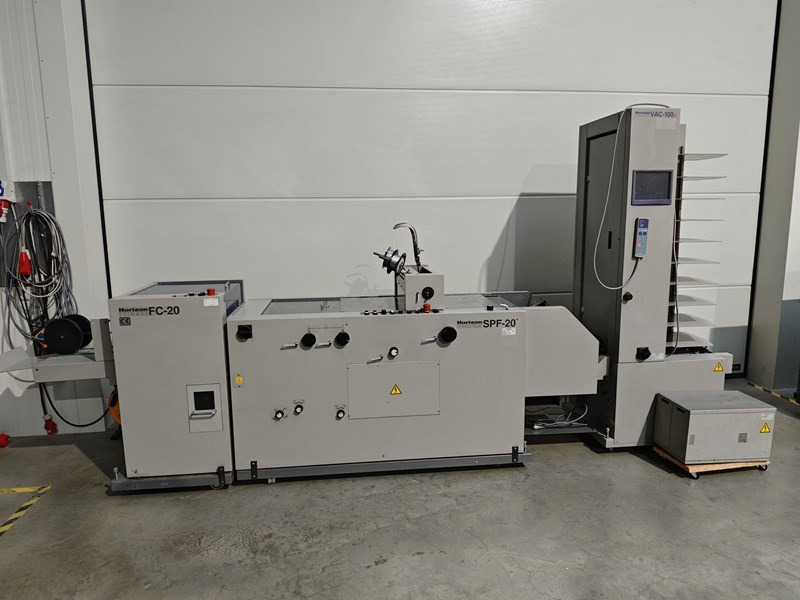

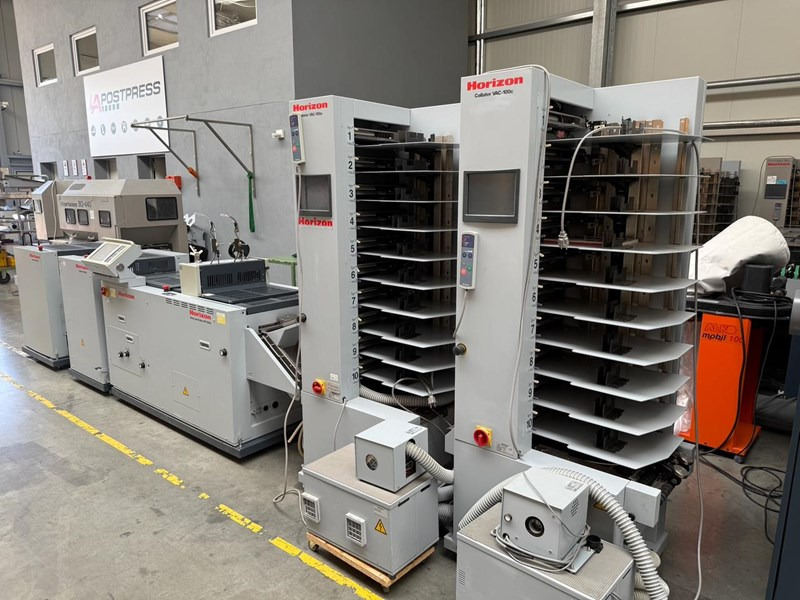

Horizon VAC-100a VAC-100c SPF-20A FC-20A Booklet Making System, Used

This Horizon booklet making system is a powerful solution for professional booklet production, combining collating, stitching, folding, and front trimming in an efficient process. It offers high productivity, versatile applications, and easy operation for efficient booklet production.

Key Features:

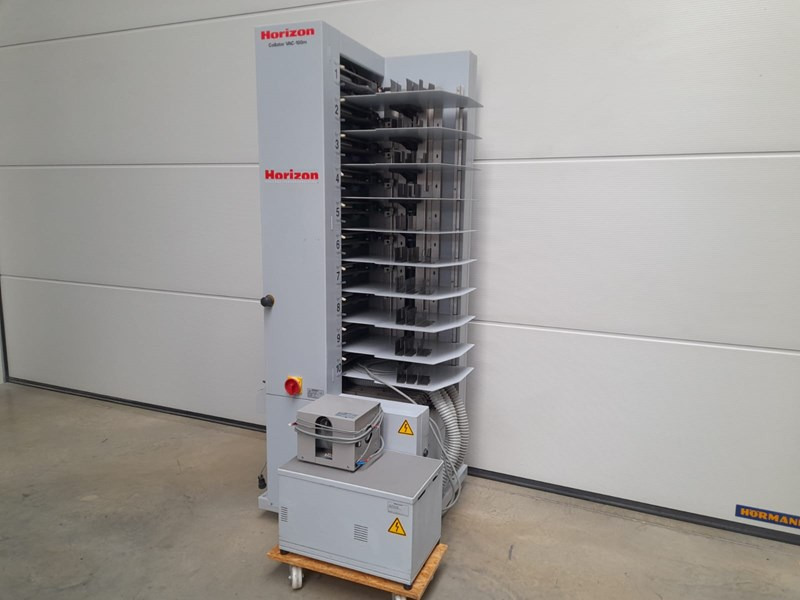

- Two collating towers: VAC-100a and VAC-100c with 10 stations each

- Versatile stitching options: Saddle, corner, and side stitching possible

- Touch & Work: Intuitive operation thanks to user-friendly technology

- 9 programmable memory locations for repeat jobs

- Precise error control: Prevention of miss-feed, double-feed, and jam problems

- Expandable configuration: Possibility to add more VAC-100 towers

Technical Specifications:

- Paper format: max. 350 x 500 mm; min. 148 x 120 mm

- Booklet format: max. 250 x 350 mm; min. 85 x 120 mm

- Paper weight: 40-300 g/m²

- Processing thickness: 2-22 sheets (80 g/m²)

- Trimming thickness: 4-50 sheets (80 g/m²)

- Front trim: max. 25 mm

- Production speed: max. 3,600 booklets/h

- Collating performance: up to 9,900 sets/h

- Loading capacity per station: 55 mm

- Power supply: 230V; 50/60Hz

- Total power consumption: approx. 2.3 kW

All-Inclusive Service Package

We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer.

Sustainable and Economical

Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.
