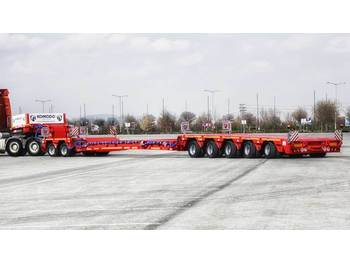

Şasi dorse KOMODO 3 AXLE EXTENDABLE CHASSIS SEMI TRAILER

- STEEL CONSTRUCTION:

High tensile strength with S 700 MC materials, High strength steel construction

Welder test according to TS EN ISO 9606-1 Welding process MAG according to EN ISO 4063.

Shielding gas M21 according to EN ISO 14175.

- AXLES:

Axle group, 2 pieces 11.000 kg capacity fixed axle (first axle lift)- 1 pieces 11.000 kg capacity self-steering axle Air suspension with lifting/lowering valve 6 Pieces high-strength air suspension bellows

6 Pieces scissors and ear sets.

- WHEELBASE:

1.360 mm

- EXTENDED LENGTH:

500 mm+500 mm

- BRAKE SYSTEM:

Braking system "WABCO" following EU-regulations with EBS-E system without connection to the truck 6 pieces automatic brake slack adjusters 2 pieces 24 type of brake cylinders

4 pieces 24-30 types of spring brake chambers Drum brake system

Emergency brake

- GOOSENECK LENGTH:

4000 mm

- ELECTRIC SYSTEM:

SABA or ASPÖCK comply with EU standards

24 V & ABS plug

2 pieces stop lights with 7 functions,

2 pieces plate lighting lamps,

Side warning lights,

Speed plates,

Reflectors,

Blinker lamp in the rear bumper.

- PLATFORM LENGTH:

12.000 mm

- RAMPS:

1 pair of hydraulic steel double flip ramps, ± 2,500 + 1.500 + 800 mm, hydraulically foldable.

Covered with steel ledges”Anti-Slip” , ± 25 mm thick and hydraulic side shift outwards.

In agreement with Regulation 1230/2012 / EU, the ramps with 300 mm length do not have to be considered for the determination of the vehicle length of 16.500 mm.

- TIRE SIZE:

J) Type 245 / 70 R 17,5 Twin tyres

Load Index 141/143 J (146/146F)

1 spare wheel

- TOTAL WIDTH:

2.550 mm

- KİNG PİN LOAD:

18.000 kg

- WARRANTY:

1 year for Parts / Manufacturer warranty. (Excluding accident-usage errors),

1 year manufacturer (Excluding, accident-usage errors),

1 year paintwork (Except for accident-usage errors)
