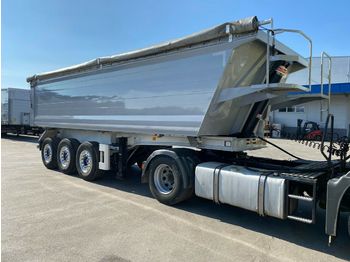

Yeni Damperli dorse HASTRAILER DAMPER 32 M3

Chassis:

High-strength chassis manufactured from S700MC via submerged welding machine – optimal gravity and stability between longbeams.

Painting:

Steelblasted SAE 2,5 norm blanc+ High zinc epoxy-based prime-coated + organic resin-based lining + acrylic final coat in colour RAL 7021 + oven dried.

Coupling:

Ø 2” (50.8 mm) coupling point conformant to SAE and DIN 74/08 Standards

Axles:

3 axles SAF or BPW Brand with a capacity of 9 tonnes and with air suspension with 120mm or 0mm offset disc brake in Heavy Duty Execution called as CD Custom Design for SAF

Automatic lifting system on the first axle.

Landing Gears:

SAF or BPW BRAND Telescopic landing gears with 24 tonnes capacity and two speed landing gears painted in black

Brake System & Lifting Axle:

EBS-E Plus brake system with 2 modules and 2 sensors (2S/2M)

RSS (Road Stability Support) system conformant to ECE R13

Pneumatic brakes with double circuit

Suspension system with lowering & lifting valves.

Lighting System:

Lighting system with 24 Volt according to EC 76/756

Reflectors located in front, on the sides and at rear according to ECE R 48

LED side, front and back marker lamps with reflectors

Rear marker lamps closed to the frame

Bulkhead division box with 2x7 pol DIN ISO 1185 and DIN ISO 3731 or 1x15 pol DIN ISO 12098

Tyres and Rims:

7 pieces Steel Rims with 120 or 0 offset. Rims painted in silver RAL 9006.

7 pieces of tyres 385/65 R 22.5 conformant to 458/2011 EU. (A-brand choice HASTRAILER)

Included Accessories of Chassis:

Side protection Anodised extruded aluminium profiles barriersconformant to ECE R 73

Rear bumper, made of steel, conformant to ECE R 58 alsofoldable for finisher operation

6 pieces of mud guards conformant to EC 109/2011 EU + 2 piecesof anti-spray mud guards

• 2 pairs of awning rings for pull out the chassis for off-roadconditions

Single spare wheel holder on the back of the axle.

1 piece fire-extinguisher box.

1 piece 30 lt water tank - CE certificated

Plastic document box.

2 yellow wheel chocks with holder.

Body:

Manufactured from 450 HB steel (the thickness of floor and front wall is 5 mm; thickness of side walls and back door is 4 mm) which is durable to abrasion and impact. Also rubber wedges enhances protection from noise and abrasion.

Hydraulic System:

4 staged hydraulic system with an operating pressure of 170 bars with a hose equipment resistant to 190 bar pressure. HYVA BRAND

Included Accessories of Body:

Shelter to protect truck from loads at back

Integrated solution on the front wall for Covering Tilt System , tarpaulin from left to right manuel.

Steel ladder integrated in front of the front wall to provide interior access.

Admission Plates:

Vehicle satisfies to the EC type-test with Certificate of Conformity (CoC).

Authorized in “REPUBLIC of TURKEY”

Two reflector plates vertically placed on the rear wall (565x200 ECE-R70)

‘Long Vehicle’ sticker

1 speed marker plate of 70-80 km/h in white and red colour, according to admission in European Countries.
