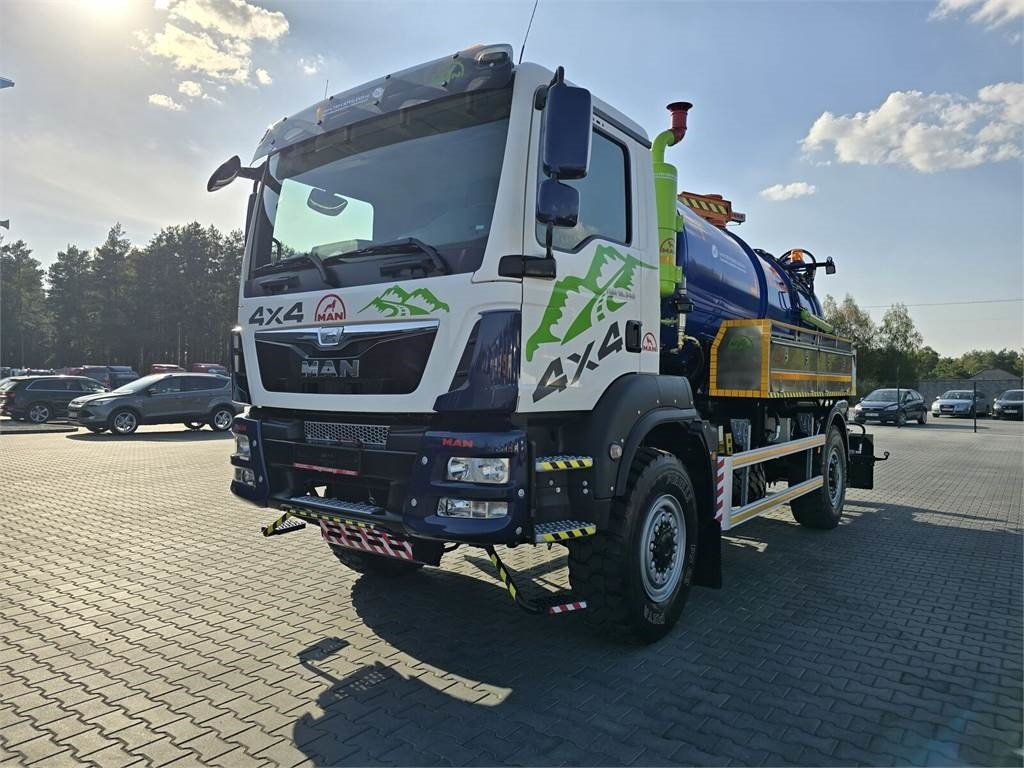

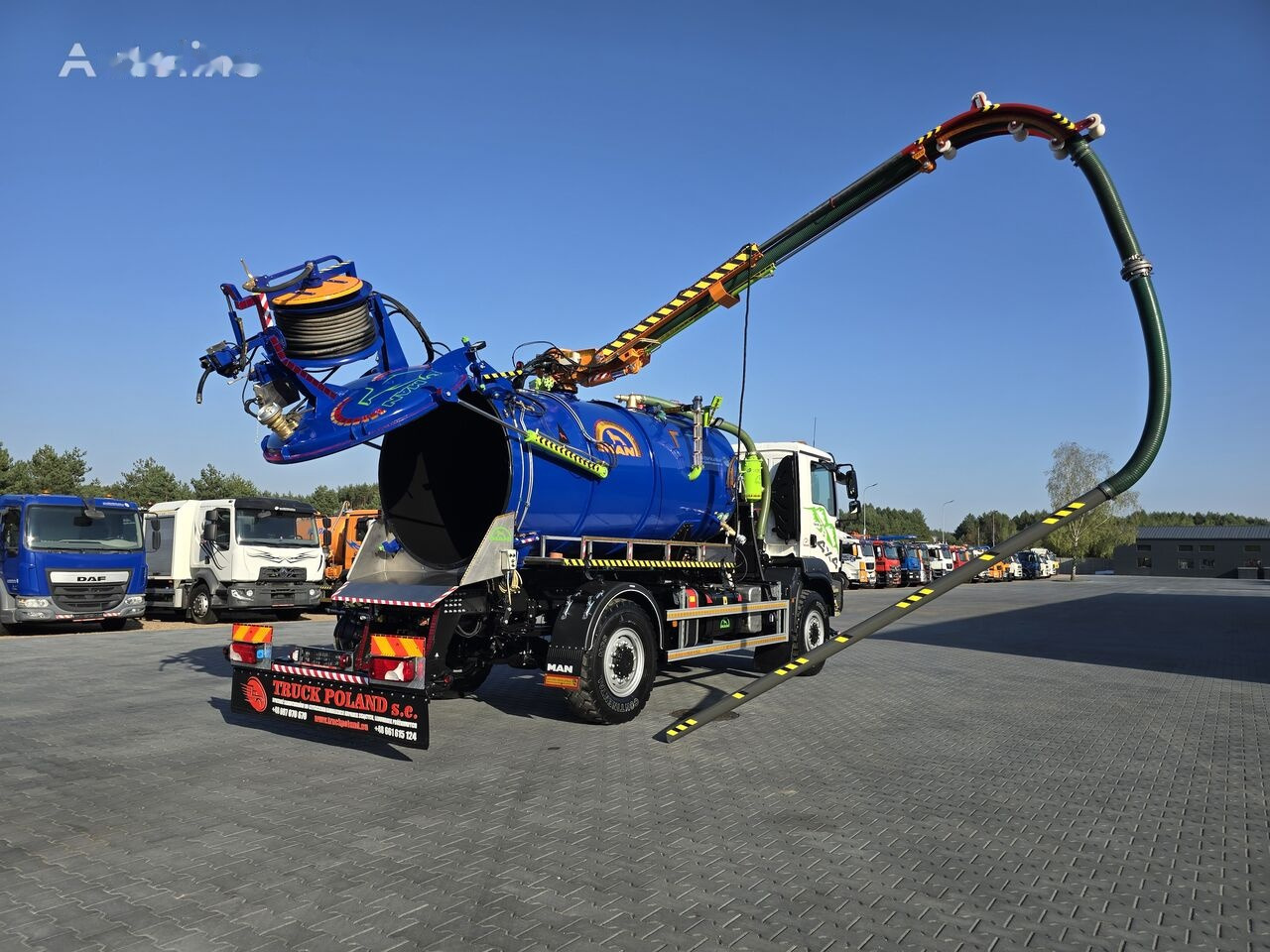

Vidanjör MAN TGM 4x4 GAMON PW8 for collecting liquid waste separators

MAN TGM 4x4 GAMON PW8 for collecting liquid waste separators

Year of production 2014

Mileage 104750 km

MODEL TGM 18.340 4x4

Two-chamber tank with a volume of - 8000 dm3 divided into:

- clean water chamber - 2000 dm3,

- sediment and dirty water - 6000 dm3.

The special sewage cleaning vehicle is designed for:

- cleaning channels using a high-pressure water system, with the possibility of simultaneously sucking impurities into the sediment tank, using a suction-pressure system,

- removing impurities and sediments from street inlets and sewage manholes, pumping water from flooded basements, deep pits, various types of tanks,

- washing facades and small above-ground objects, such as monuments, bus shelters, as well as work stations and vehicles, using a water gun.

Vacuum pump - rotary vane compressor ZNMR T-529/3/-P-H-M

capacity 1000 m3/h

High-pressure pump SPECK P 55/128

capacity: up to 128 l/min at a pressure of 160 bar

Equipment

Hydraulically driven compressor. Telescopic boom extendable and lifted hydraulically

Length of large hose – 100 m

Length of small hose - 100 m

Webasto – parking heater for barrels, possibility of winter operation

High-pressure water system with a plunger pump works with various types of cleaning nozzles and special heads and a water gun, using a water jet of appropriately high pressure. The system is adapted to work in negative temperatures down to -15 C and has the ability to remove water by blowing out its remains.

The suction-pressure system with a suction-pressure pump (compressor) works with a boom and a lower suction valve, using suction hoses.

The sediment tank has a bottom that can be opened and closed and hydraulically locked.
